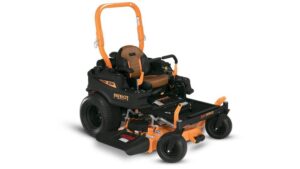

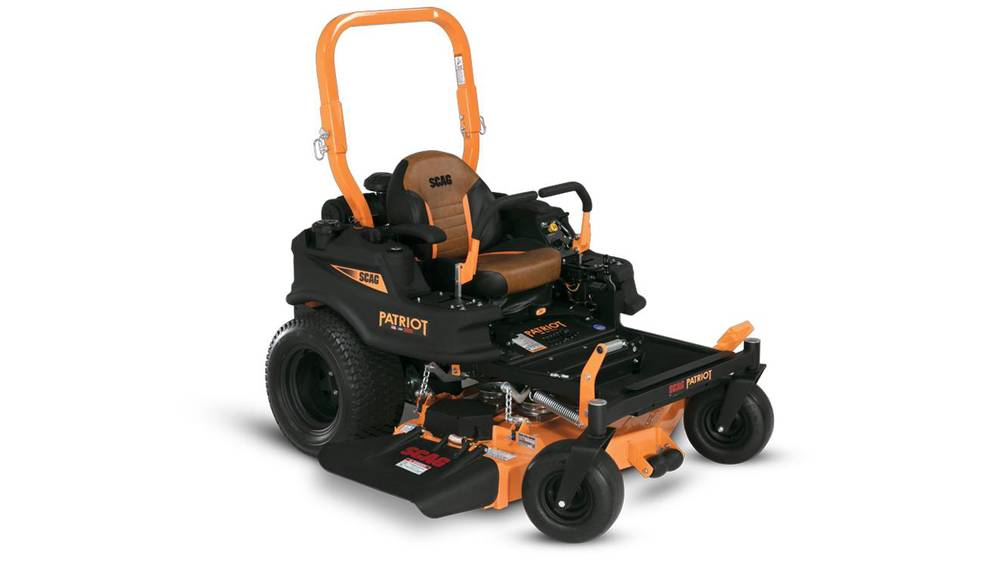

2026 Scag Power Equipment Patriot SPZ-52H-25ZT 52-in.
$8,599.00
Features
- Strong, Adjustable Clutch for Long Life: The Ogura GT2 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 108 ft. lb. of holding strength, and an adjustable air gap for long life.
- Deep, Fabricated, And Welded Cutter Decks: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
- Solid Design for Years of Dependable Service: Tubular-steel main frame delivers unmatched strength and longevity.
- Speeds Up To 10 MPH (SPZ61) / 8.5 MPH (SPZ52): The ZT drive systems’ dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.
- More Uptime: Fewer grease points increase operator convenience and ease-of-ownership.
- Ride in Comfort: The torsion-spring suspension seat adjusts to each operator’s weight, is contoured and features armrests, all to provide superior comfort.
- Crank Up the Comfort: Pierced, extruded-steel footplate is rubber iso-mounted for enhanced comfort.
- Stay in Control: Foot-operated parking brake activates a disc-brake system, allowing the parking brake to be engaged without taking your hands off of the steering controls. Ausco disc brakes provide reliable performance.
- Reliable Power, Up To 27 HP: Choose from a variety of proven air-cooled, V-twin engine options to help you get the job done.
Dimensions
- Length: 73 in.
- Width (chute down): 64.5 in.
- Width (chute in transport position): 53 in.
- Height (ROPS folded): 46.5 in.
- Height (ROPS up): 61 in.
- Weight: 907-911 lb
Specifications
- Total Fuel Capacity: 6.5 gal.
- Drive Tires: 22 in. x 10.5 in.-12 in. (52 in.)
- Caster Tires: 13 in. x 6.5 in.-6 in.
- Seat: Torsion-spring suspension seat
- Drive System Type: Hydro-Gear ZT3100 Transaxle (52 in.)
- Pumps: ZT3100 Internal Pump: 10 cc (52 in.)
- Motors: Internal Motor: 16 cc
- Forward Ground Speed: 8.5 mph (52 in.)
- Reverse Ground Speed: 5 mph
- Parking Brake: Foot-operated pedal
- Cutting Widths: 52 in.
- Cutting Height: 1.5 in. to 5 in. in .25 in. increments
- Spindles: Aluminum housing with sealed ball bearings.
- Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
- Deck Lift: Foot-operated pedal
- Type: Hero Cutter Deck
- Blade Engagement: Ogura GT2 (108 ft lb); Adjustable air-gap for extended life.
