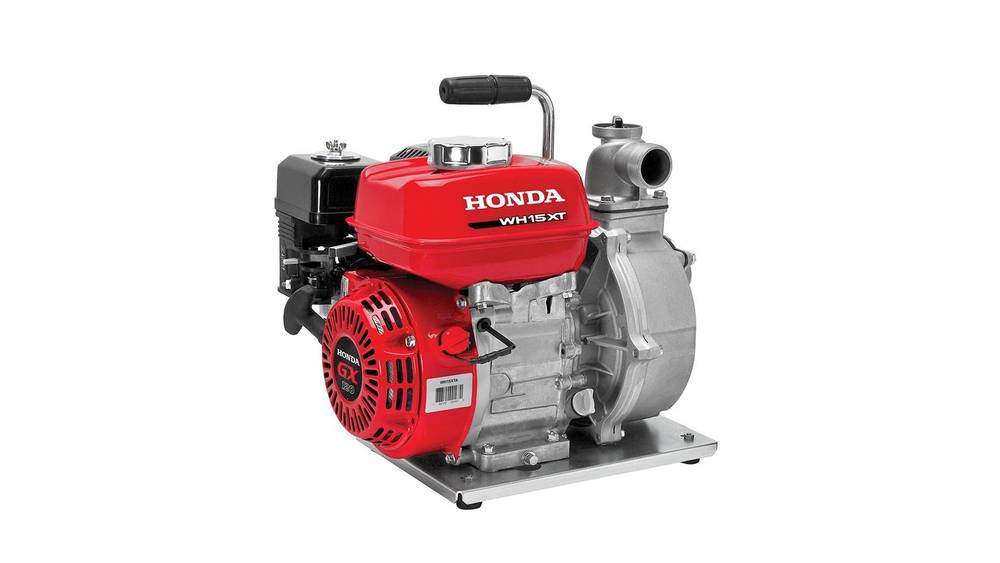

Honda Power Equipment WH15
$699.00
1 1/2″ high pressure water pump
Key Features
- 98 gal./min. capacity
- 57 psi max.
- Cast iron volute and impeller
Features
- High pressure – ideal for sprinklers or nozzles: With a maximum pressure of 57 psi, the WH15 is designed for a variety of applications requiring high pressure.
- Easy starting Honda OHV commercial engine: The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.
- 98 gal./min. capacity
- Cast iron volute and impeller: The rigid-mount cast iron volute reduces case wear, increasing the life of the pump.
- Easy carry handle: The WH15 is easy to transport wherever you need it.
- Lightweight aluminum case
Specifications
- Engine: GX120
- Displacement: 118cc
- Bore and stroke: 2.4 in. x 1.7 in.
- Compression Ratio: 8.5:1
- Oil Alert: N/A
- Pump Type: High Pressure, Centrifugal, Self-priming
- Volute: Rigid Mounted Cast Iron
- Impeller: Cast Iron
- Mechanical Seal (Pump case / impeller): Carbon/Ceramic
- Priming time: 80 sec. at 16.4 ft.
- Drive system: Direct
- Discharge capacity: 98 gpm
- Suction port diameter: 1.5 in. NPT
- Discharge port diameter: 1.5 in. NPT
- Total head lift: 131 ft.
- Suction head lift: 26 ft.
- Maximum pressure: 57 psi
- Solids handling: N/A
- Dimensions (LxWxH): 16.3 in. x 14.2 in. x 16.3 in.
- Dry weight: 49 lb.
- Fuel Capacity: 0.53 gal
- Run Time @ Max Discharge: 1.5 hr
- Strainer Part #: 78325-YB7-020
- Residential Warranty: 2 years
- Commercial Warranty: 1 years
