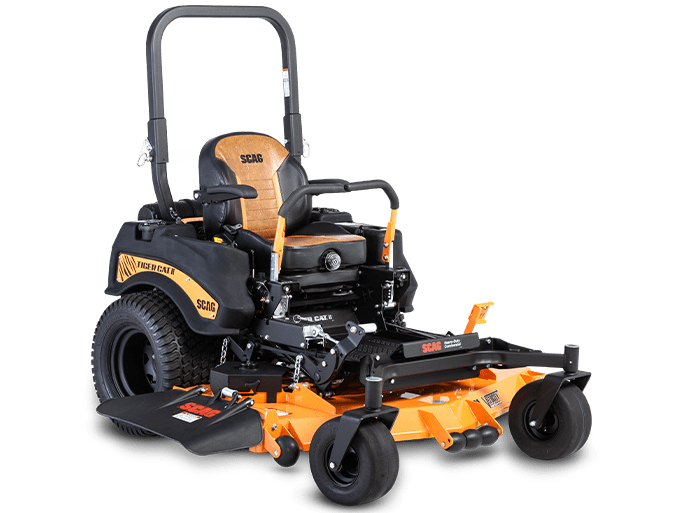

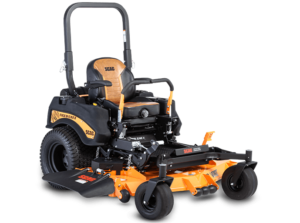

Scag Tiger Cat II STCII-48V-23CV
$11,729.00
| General |
| Total Fuel Capacity |
9.5 gallons |
| Drive Tires |
24″ x 9.5″-12″ (48″ and 52″)
24″ x 12″-12″ (61″) |
| Caster Tires |
13″ x 6.5″-6″, flat-free |
| Seat |
4-point iso-mounted mid-back mounted on operator-suspension platform |
| Drive System |
| Drive System Type |
Dual Pump and Motor |
| Pumps |
Hydro-Gear 12 cc |
| Motors |
Parker 14.5 ci |
| Forward Ground Speed |
12 mph |
| Reverse Ground Speed |
5 mph |
| Parking Brake |
Foot-operated pedal |
| Deck |
| Cutting Widths |
48″, 52″ and 61″ |
| Type |
Velocity Plus™ |
| Cutting Height |
1″ to 5″ in .25″ increments |
| Deck Lift |
Adjustable foot-operated pedal |
| Construction |
Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles. |
| Spindles |
Cast-iron housing with tapered roller bearings. |
| Blade Engagement |
Ogura GT3.5 (250 ft lb)
Adjustable air-gap for extended life. |
